ĦConnector "LoRaPay"

Description

Powered by the ESP32-S3FN8 dual-core processor (240 MHz), this versatile device integrates LoRa, Wi-Fi, and Bluetooth 5 LE.

Exceptional Range up to 20 Km:
Built with the SX1262 LoRa chip, offering 21 dBm transmit power, -134 dBm sensitivity, and RF shielding. Includes 863~928 MHz antennas for long-range performance in local radio meshnets.

Protective Custom Enclosure:

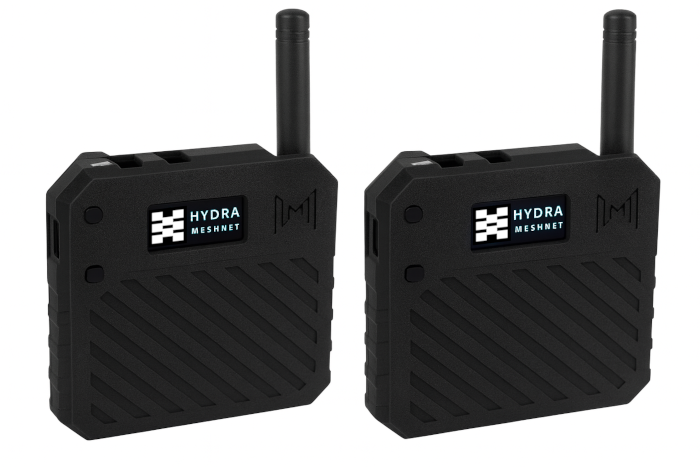

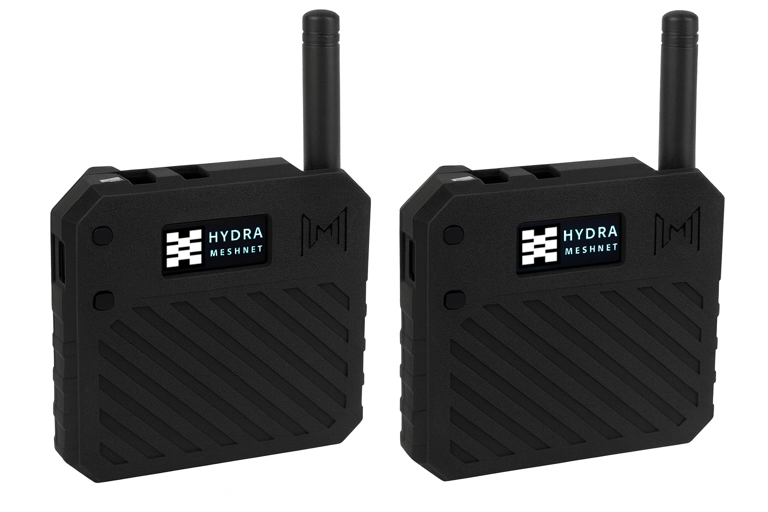

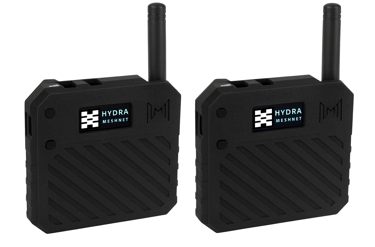

Durable case securely fits the board, battery, and antennas. Precision cutouts provide access to display, Type-C charging, buttons, and external antenna port. Lightweight and rugged for mobile use.

Powerful Battery System:
Includes 3000 mAh lithium battery with built-in protection against overcharge, discharge, short circuits, and overheating. Integrated USB/Battery power switching and OLED battery level display.

Feature-Rich:
0.96" OLED screen, CP2102 USB-to-Serial, dual battery connectors, IPEX port, and rich I/O: ADC, I2C, SPI, UART, and touch sensors for flexible expansion.

Package Includes:
ESP32-S3 LoRa V3 board, 863~928 MHz antenna, 3000 mAh battery, and custom-fit case.

Technical Specifications

Master Chip: ESP32-S3FN8 (Xtensa 32-bit LX7 dual-core processor)
LoRa Node Chip: SX1262
USB to Serial Chip: CP2102
Frequency: 470~510 MHz, 863~928 MHz
Max. TX Power: 21 dBm
Max. Receiving Sensitivity: -134 dBm@SF12 BW=125 KHz
Transmission rate: up to 5 KBit/s
Maximum range: 20 km line of sight, 500 m on urban ground
Wi-Fi: 802.11 b/g/n, up to 150 Mbps
Bluetooth: Bluetooth 5 (LE)
Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory: 384 KB ROM; 512 KB SRAM; 16 KB RTC SRAM; 8 MB SiP Flash
Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin
Battery: 3000 mAh, 3.7 V lithium battery power supply and charging
Operating Temperature: -20 ~ 70 ℃
Dimensions: 50.2, 25.5, 10.2 mm

This radio module is currently the cheapest and simplest meshnet device on the market for connecting with other people in the area. It operates on the LoRa frequencies 863-928 MHz and enables transmission rates of up to 5 KBit/s. Our software makes it possible for the first time to use these devices for secure crypto currency payments and simple emergency text messages in crisis areas with outages of the public electricity grid. (Available for pre-order here!)

Price: 99.- USDC

Attention!
Because of limited, but quickly scalable production capacities we can now only take pre-orders to calculate delivery time. You can signal your interest in buying via E-Mail at pre-order@hydramesh.net. Within the next few weeks we will automatically inform you about the launch of our ĦShop in ĦWallet, where you can place your binding order then!

(Enclosure for LoRaPay is subject to change.)
