ĦConnector 'LoRaPay'

Description

Powered by the ESP32-S3R2 dual-core processor (240 MHz), this versatile device integrates LoRa, Wi-Fi, and Bluetooth 5 LE.

Exceptional Range up to 20 Km:
Built with the SX1262 LoRa chip, offering 28 dBm transmit power, -137 dBm sensitivity, and RF shielding. Includes 863~928 MHz antennas for long-range performance in local radio meshnets.

Protective Custom Enclosure:
Durable case securely fits the board, battery, and antennas. Precision cutouts provide access to display, Type-C charging, buttons, and external antenna port. Lightweight and rugged for mobile use.

Powerful Battery System:
Includes 3000 mAh lithium battery with built-in protection against overcharge, discharge, short circuits, and overheating. Integrated USB/Battery power switching and OLED battery level display.

Feature-Rich:
0.96" OLED screen, CP2102 USB-to-Serial, dual battery connectors, IPEX port, and rich I/O: ADC, I2C, SPI, UART, and touch sensors for flexible expansion.

Package Includes:
3x (preconfigured and plug&play-ready ESP32-S3R2 LoRa V4 boards with 5-7dbi 863~928 MHz antennas, 3000 mAh batteries, and custom-fit cases).

Technical Specifications

Master Chip: ESP32-S3R2 (Xtensa 32-bit LX7 dual-core processor)
LoRa Node Chip: SX1262
USB to Serial Chip: CP2102
Frequency: 863~928 MHz
Max. TX Power: 28 dBm
Max. Receiving Sensitivity: -137 dBm@SF12 BW=125 KHz
Transmission rate: up to 3.1 KBit/s
Maximum range: 30 km line of sight, 500+ m on urban ground
Wi-Fi: 802.11 b/g/n, up to 150 Mbps
Bluetooth: Bluetooth (LE), Bluetooth 5, Bluetooth Mesh
Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory: 384 KB ROM; 512 KB SRAM; 16 KB RTC SRAM; 2MB PSRAM; 16MB Flash
Interface: Type-C USB; 2*1.25 lithium battery interface; 1.25*2 Pin Solar interface;
1.25*8 Pin interface; LoRa ANT(IPEX1.0); 2,4G ANT(IPEX1.0)
Battery: 3000 mAh, 3.7 V lithium battery power supply and charging
Operating Temperature: -20 ~ 70 ℃
Dimensions: 51.7, 25.4, 10.7 mm

This radio module is currently the cheapest and simplest meshnet device on the market for connecting with other people in the area. It operates on the LoRa frequencies 863-928 MHz and enables transmission rates of up to 3.1 KBit/s. Our software makes it possible for the first time to use these devices for secure crypto currency payments and simple emergency text messages in crisis areas with outages of the public electricity grid. (Available for purchase in our ĦShop in ĦWallet!)

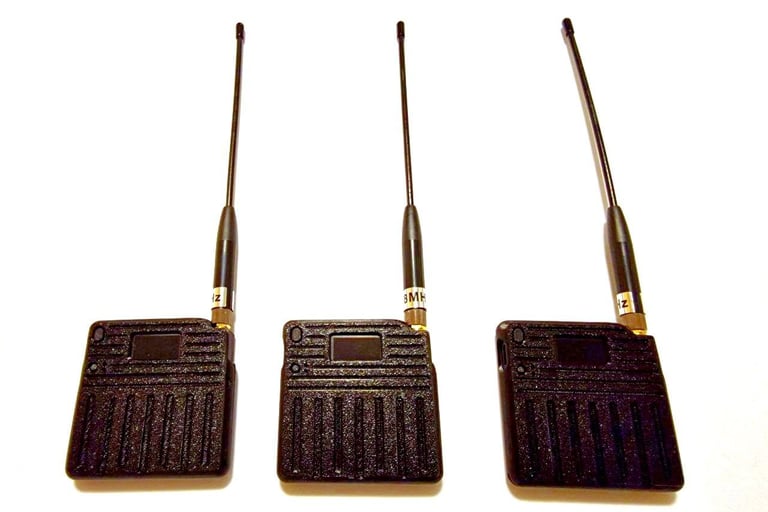

(3D-printed enclosure for LoRaPay is subject to change.)

Order our 'Proof-of-Concept'-Kit now, including three plug&play-ready LoRaPay radio modules in our ĦShop within ĦWallet:

Price: 249.- Euro payable in USDC

Enjoy a discount of 4% if you invest more than 500 USD in our HMESH Presale.
Enjoy a discount of 8% if you invest more than 1000 USD in our HMESH Presale.

(Or - if your friends already have setup a LoRaPay PoC-kit - you can just buy a single device for €99.- or two for €179.-, always payable in USDC within ĦWallet.)
